Product specification

Infiniti Through the Wall Air Conditioner with Heat, 10,000 BTU, 230/208 Volt, R32 Refrigerant.

Infiniti Through the Wall Air Conditioner with Heat, 10,000 BTU, 230/208 Volt, R32 Refrigerant. — image 1 of 5

Image 1 of 5

Request pricingIn stock

Quote-list controls are preparing. If they remain unavailable, enable JavaScript or reload this page. You can still browse product details.

Enter a whole number from 1 to 10,000.

Adds this item to your quote list. Pricing and fulfillment details are confirmed when we quote.

Infiniti through-wall air conditioner with 10,000/9,800 BTU cooling and 10,600/8,600 BTU heating capacity. Features R32 refrigerant, digital controls, remote control and trim kit.

Description

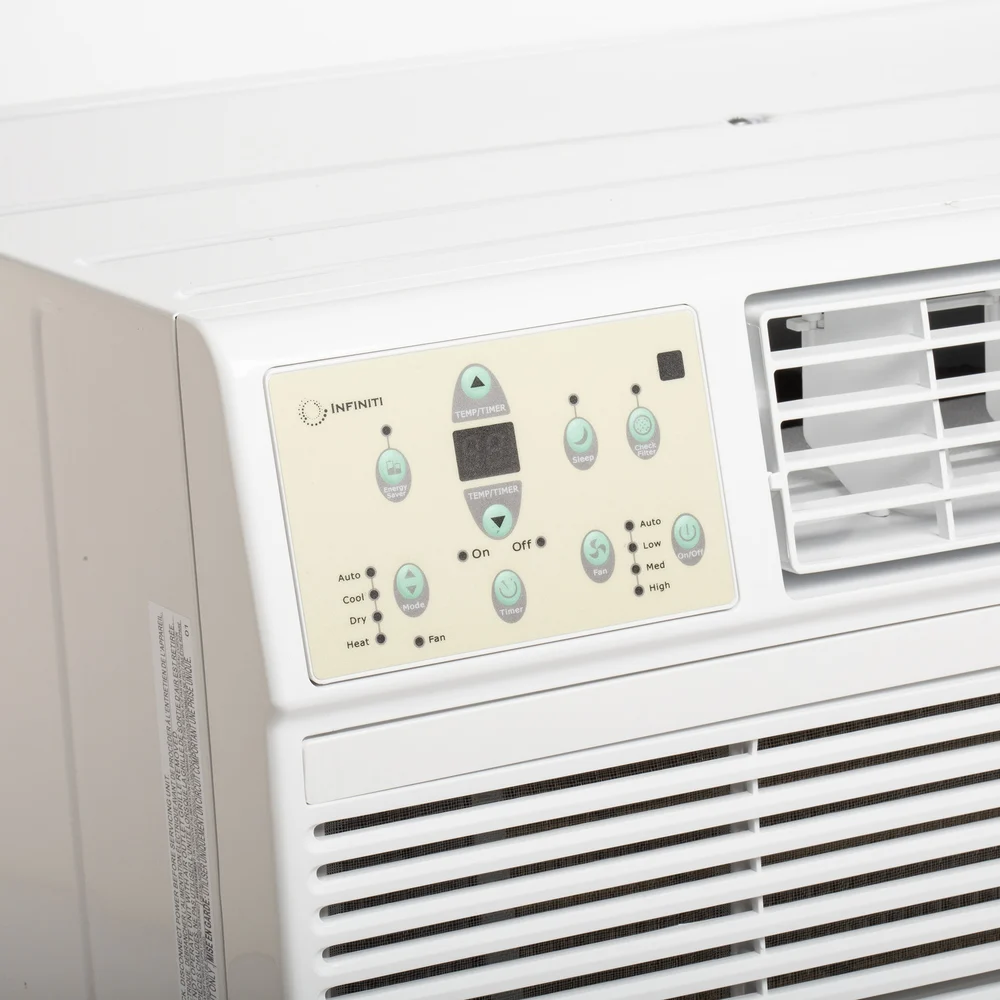

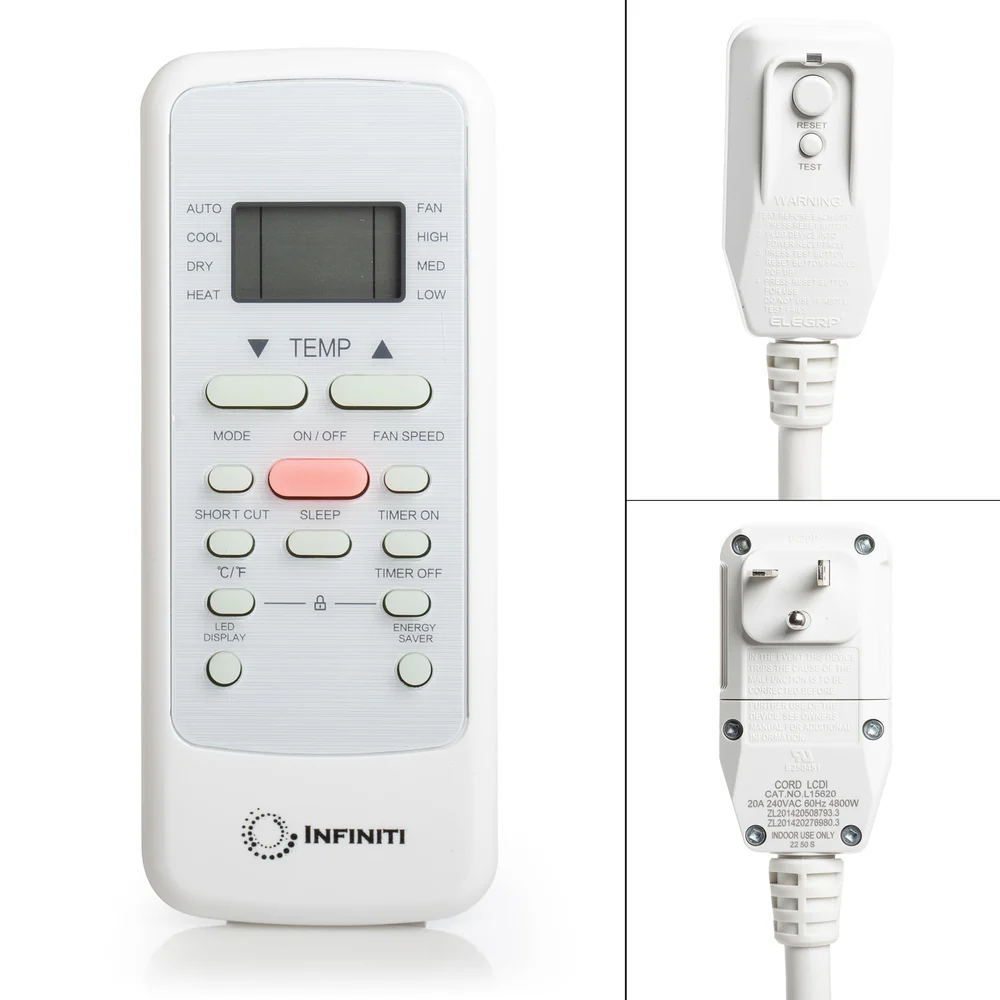

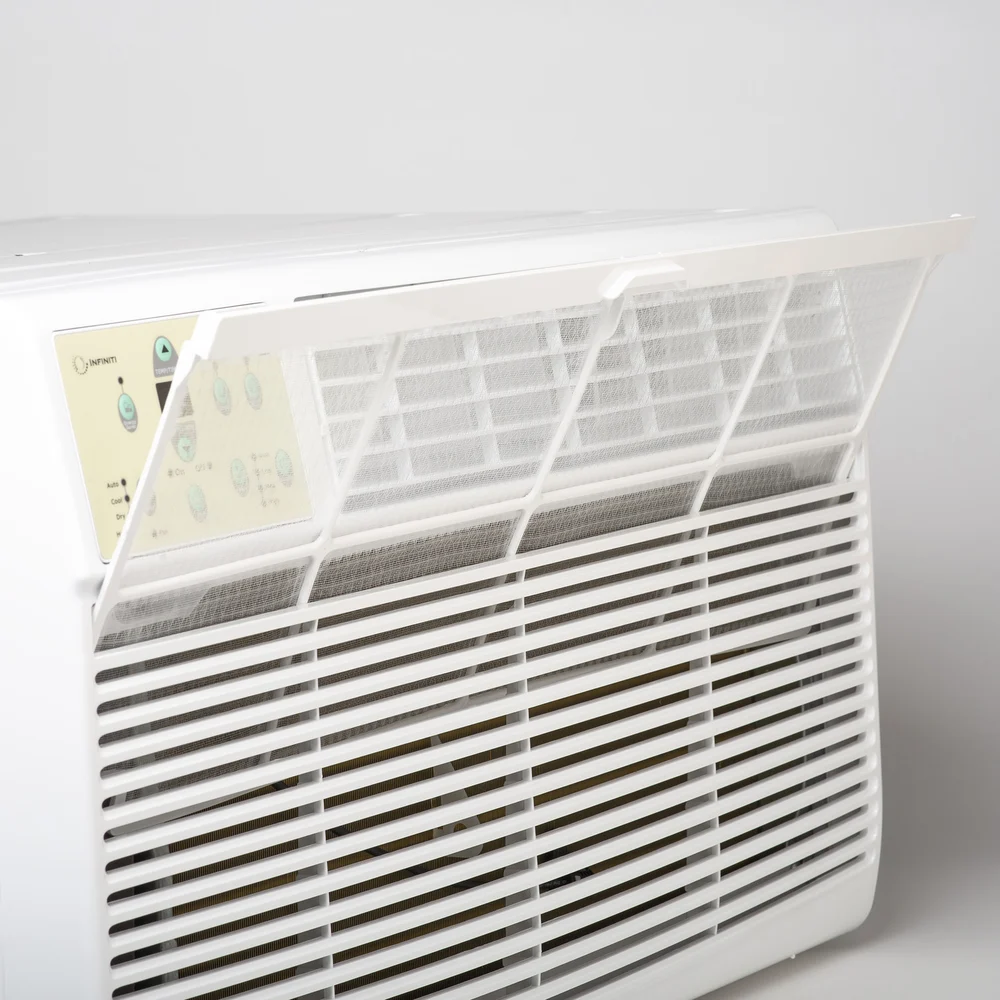

Heat or Cool your rooms with reliable Infiniti TTWs. With a Cooling capacity of 10,000/9,800 BTU and Heating capacity of 10,600/8,600 BTU , this unit uses New R32 refrigerant, which is more energy efficient than R-410A and more effective in reducing Global Warming Potential (GWP). Units also feature an easy-to-control digital touch pad plus a separate remote control and low sound operation, easy access slide-out filter, check filter indicator light, and trim kit. Three fan speeds of high, medium, and low high-speed fan only option also included. In addition, units feature a special anti-corrosion coating on the heat exchanger. That’s not all. These units include Electronic Controls with Led Display, Adjustable 4-Way Air Flow Direction, sleep mode feature, Energy Saver feature, Programmable 24-Hour On/Off Timer, and Dry Mode option. Wall sleeve and other accessories are sold separately. 2-year parts and labor warranty. 5-year compressor warranty, 230V/208V with LCDI NEMA 6-20P Plug type. UL-listed, 24 1/4" W x 20 3/8 D x 14 1/2" H.

Specifications

Capacity
230/208 Volts
Color
White
Product Type
Thru-the-Wall Units
Refrigerant
R32
Size
24 1/4" W X 20 3/8 D X 14 1/2"
Style
Cooling with Electric Heat
Voltage
230/208
Registry Brand
No
Made In USA
No
Product Height
14 1/2 IN
Product Length
20 3/8 IN
Product Width
24 1/4 IN
Height
14.500 IN
Weight
70.5500 LBS
Width
24.000 IN
Length
20.500 IN
California Prop 65
Yes
Origin Country
China
Brand
Infiniti
Living Green
No
UL Approved
Yes
Has Warranty
Yes
Warranty Type
2 Year Parts/Labor & 5 Year Compressor
